Remote System for Viper

Product Code

331865

Weight:  1.0KGS

was £102.00

£81.60

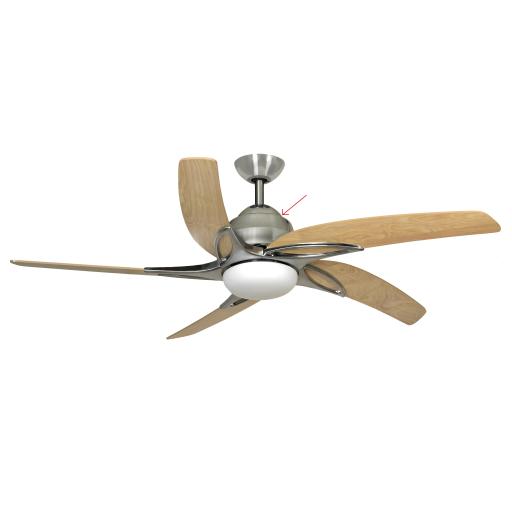

Recessed into the side of the motor casing

Qty

2 Years



Remote control specific to Viper ceiling fan. Please select your option based on the location of the reverse switch that changes the direction of the rotation of the blades for summer/winter use.

Our radio frequency remote control operates fan speeds and dims light. Requires twin and earth wiring (live, neutral and earth) . Fantasia remote control system complete with wall mountable holder and battery. Controls all 3 ceiling fan speeds and light on/off/dim. Comes with 2 year manufacturers motor warranty. Receiver unit fits in ceiling fan bracket at ceiling level and is hidden by ceiling rose canopy. Note: one remote control is required per fan.

These replacement remote systems are suitable for use with Viper fans and are intended to supercede the original fan controller if it has lost speeds, fails to control the fan or light or fails to switch the fan off.

Dimensions & Specifications

Click here for our MEASURING-UP GUIDE

 A = Diameter of blades, tip to tip
 B = Distance from ceiling to blades
 C = Overall depth of fan
 D = Diameter of ceiling fixing plate
 X = Depth of light fitting
 Y = Width of light fitting
 Light = Bulb(s) where applicable

 Ensure minimum 6" clearance from tip of all blades to any obstruction

 Ensure height from blades to floor is at least 7.5 ft


 NB: Where two dimensions are given for B or C this means the fan is dual mount and can be fitted either flush to the ceiling or on the drop rod supplied.

   Controller  Bulb type & wattage Motor Rating (W) Cu Ft per Min (high) RPM Weight in kg Fan Dimensions (mm)
High Med Low Gross Net A B C X Y D Drop Rod Type  Motor Warranty
Aero Remote 18w LED Array, colour changing 41 8000 195 115 60 9.5 8.5 1440 320 360 40 175 150 NON-STD 10
Atlanta Pull Cord 1 x 60w SES E14 (golf) 60 2595 263 205 151 5.8 5.3 760 160/260 280/380 130   130 STD 22mm 5
Belaire Pull Cord n/a 60 3571 200 135 87 5.6 5.0 1070 180 225     150 STD 27mm 5
Belaire Combi Pull Cord 3 x 60w SES E14 60 3571 200 135 87 7.2 6.2 1070 180 225 145 360 150 STD 27mm 5
Blade Remote n/a 60 4083 148 105 72 6.1 4.5 1070 205 365     210 STD 27mm 10
Breeze Remote 22w LED 2700k 26 4000 185 125 110 7 5.6 1112 290 395 90   130 STD 22mm 5
Capri Pull Cord n/a 45 4725 200 140 85 5.4 4.8 910 160 221     130 STD 22mm 10
Capri Combi Pull Cord 3 x 60w SES E14 45 4725 200 140 85 6.3 5.5 910 160 221 125 280 130 STD 22mm 10
Cirrus Remote 18w LED Array 50 1674 245 187 130 7 6.3 1016 205 305 35   170 STD 22mm 10
Classic Pull Cord n/a 64 6165 199 127 88 7.0 6.3 1320 240/350 325/370     133 STD 27mm 10
Commercial 36 Wall Control n/a 45 5000 271 247 145 5.2 4.5 910 470 515     148 NON STD 2
Commercial 48 Wall Control n/a 65 6300 290 189 102 7.2 6.4 1220 470 151     148 NON STD 2
Commercial 56 Wall Control n/a 68 6800 295 201 105 7.7 6.9 1440 470 515     148 NON STD 2
Darwin 36" Remote 15w LED Array 65 5400 209 172 97 7.9 5.9 910 170/257 218/318 38   130 STD 27mm 10
Darwin 44" Remote 15w LED Array 65 5400 209 172 97 7.9 6.1 1070 170/257 218/318 38   130 STD 27mm 10
Darwin 52" Remote 15w LED Array 65 5400 209 172 97 7.9 6.3 1370 170/257 218/318 38   130 STD 27mm 10
Gemini Pull Cord 3 x GU10 45 4725 200 141 89 7.2 6.3 1070 190 260 90 260 130 STD 22mm 10
Islander Wall Control n/a 66 7600 290 268 167 11.8 10.5 1420 450 515     155 STD 22mm 10
Kompact Pull Cord 18w LED 4000k 56 4280 292 249 209 5.8 5.2 700 175 290 90 215 130 STD 22mm 10
Luna 40" Remote Control 22w LED Array, colour changing 40 7100 236 152 93   5.8 1020 280 320 40 215 150 STD 27mm 10
Luna 46" Remote Control 22w LED Array, colour changing 40 7400 228 135 81   6.35 1170 280 320 40 215 150 STD 27mm 10
Mayfair Pull Cord n/a 50 5216 210 140 86 6.1 5.5 1070 165 240     150 STD 22mm 10
Mayfair Combi Pull Cord 3 x G9 or GU10 50 5216 210 140 86 7.4 6.2 1070 165 240 100 300 150 STD 22mm 10
Montana 42" Pull Cord 3 x 60w SES E14 50 4300 195 140 80 6.4 5.4 1070 210/310 350/450 190   130 STD 22mm 5
Montana 36" Pull Cord 3 x 60w SES E14 50 4300 220 160 95 6.3 5.3 960 210/310 350/450 190   130 STD 22mm 5
Moreno 42" Pull Cord 1 x 60w SES E14 50 4300 195 140 80 5.8 4.8 1070 210/310 350/450 190   130 STD 22mm 5
Moreno 36" Pull Cord 1 x 60w SES E14 50 4300 220 160 95 5.6 4.6 960 210/310 350/450 190   130 STD 22mm 5
Neptune 54 Remote 20w LED Array 3000k 75 5300 208 140 84 10.5 9.3 1320 170/315 230/375 38 248 146 STD 27mm 5
Neptune 44 Remote 20w LED Array 3000k 75 5300 268 192 94 10.4 9.2 1120 170/315 230/375 38 248 146 STD 27mm 5
Orion Remote n/a 42.4 4100 215 187 104 10.4 8.7 1120 260 310 n/a n/a 170 STD 27mm 10
Orion Combi Remote 2 x G9 LED Bulbs 42.4 4100 215 187 104 10.4 8.7 1120 260 310 70 220 170 STD 27mm 10
Palm Pull Cord n/a 66 5373 209 149 93 11.0 10.0 1320 360 430 120 260 130 STD 22mm 10
Prima 52" Remote 18w LED Array 3000k 73 5358 184 128 74  10.0  9.0 1320 220/320 290/390 40 170 150 STD 27mm 10
Prima 42" Remote  18w LED Array 3000k   73 5358  184 128 74 10.0   9.0 1070 220/320 290/390 40 170 150 STD 27mm 10
Sirocco Remote 20w LED Array 35 7100 150 115 75 10.9 8.4 1370 218 308 22   140 STD 27mm 10
Spinnaker 52" Pull Cord n/a 66 4292 120 80 46 9.4 8.6 1320 360 430     130 STD 22mm 10
Tau 48" Remote 10w LED GX53 Bulb 35 6750 198 100 50 7.5 6.5 1270 310 310 60 153 130 STD 27mm 10
Tau II 48" Remote 20w LED Array 3000k 35 6750 198 100 50 7.5 6.5 1270 310 310 60 153 130 STD 27mm  10
Viper Plus 44" Remote 20w LED Array 92.4 5262 271 203 116 11.4 10.1 1120 320 n/a 100 210 133 STD 27mm 10
Viper Plus 54" Remote 20w LED Array 105.9 6612 199 140 80 11.4 10.1 1370 320 n/a 100 210 133 STD 27mm 10
Zeta Remote 18w LED Array 2800k 32 5387 173 125 50 6.8 5.7 1320 240 300 50 175 180 N/A 10



Q. What size fan do I need?
A. When choosing a ceiling fan it is important to remember that it is more relaxing and efficient to run a larger fan on a lower speed than a small fan on a higher speed. Fantasia Fans range from 28”/71cm to 56”/144cm in diameter to suit any installation. In order to generate air movement, it is very important that you have sufficient clearance from the tip of the blades to the slope of the ceiling or any other obstruction such as a beam. For larger rooms we recommend 2 or more fans. Should the room have above average heat conditions e.g. conservatory or south facing bedroom, then increase the fan size to the next size up. Rooms with ceilings higher than 8ft 2” (2.5m) will require a longer drop rod to lower the fan to a suitable level of operation. For a room with a standard 8ft ceiling, recommended sizes are as follows:

Room Size  =  Fan Size
8ft x 10ft  (2.43m x 3m)  =  28”/30” (71cm/76cm)
12ft x 12ft (3.65m x 3.65m)  =  36”/42” (91cm/107cm)
15ft x 12ft (4.57m x 3.65m)  =  42”/52” (107cm/132cm)
20ft x 14ft (6.1m x 4.27m)  =  52”/54”/56” (132cm/137cm/144cm)

Q. Will my ceiling fan keep me awake at night?
A. No, it really shouldn't. Fantasia Ceiling Fans run very quietly and, particularly on low speed, you should hardly notice it. Some competitors’ fans are noisy and wobble because they are made from lower quality materials. Fantasia fans run quietly and, even when fitted with a drop rod, are very stable.

Q. Can fans be installed on a very high or sloping ceiling?
A. Yes, our mounting systems are versatile so most fans can take a drop rod up to 72" / 183cm in length and the ball joint configuration allows for angles up to 20 degrees. A minimum of 6” must be allowed between the tip of the blade and the slope of the ceiling, or any other obstruction. The British Standards Institute recommends that the blades should be no less than 7ft 6” from the floor.

The Drop Rod length is determined by the ceiling height. The optimum height from the floor to the blade is between 7ft 6” and 9ft. Flush mounted fans will require a Conversion Kit to fit a drop rod.

Click here for our MEASURING-UP GUIDE

Q. Is installation difficult?
A. A ceiling fan can be wired into an existing lighting circuit (two core and earth) and is a simple DIY job. We recommend that installation is carried out in accordance with National Electrical Codes. The fixing point for the ceiling fan must be strong enough to support 4 times the fan’s stationary weight. If you are in any doubt then consult a qualified electrician.

Q. Can I operate the fan and light independently?
A. Yes you can - we get asked this a lot - the fan and light have separate controls so the fan can be used when the light is off and visa versa.

Q. How do I operate the fan speeds?
A. Your Fantasia fan will be supplied with either a remote control, a stepped wall speed control or an integral pull switch with chain. The remote control consists of a handset and receiver unit. All our pull-cord operated fans can be upgraded to either wall control or remote control and this can be done at a later date if required. A wall mounted variable dimmer switch must not be used to adjust fan speeds.

Q. How do I operate the fan light?
A. If the fan has a light then this will be operated by either the remote control, a wall switch or a separate integral pull switch with chain. The fan and light can always be operated independently.

Q. What fan accessories might I need?
A. We offer a wide range of accessories to cater for every type of installation. Flush mounted fans can be converted to drop rod mount using a Conversion Kit and longer drop rods ranging from 12”/30cm to 72”/183cm are available for conservatory installations or rooms with high ceilings. A Big Strip Fastener can be useful when attaching a fan to a narrow beam or conservatory crossbar. Light Kits are available to fit to ceiling fans that come without a light as standard. We can even supply a ceiling fan Blade Duster!

Q. Are fans noisy and do they wobble?
A. Some competitors’ fans are noisy and wobble because they are made from inferior materials. Fantasia fan motors are larger, and are of silicon steel construction with double sealed bearings, ensuring long, quiet, reliable and maintenance-free operation. Fantasia fans move more air, run quietly and, even when fitted with a drop rod, are very stable.

Q. How much does a fan cost to run?
A. Fantasia fans run off the standard lighting circuit (5 amp) and are very economical to run. The winter setting on our fans re-circulates the warm air trapped at ceiling level, eliminating cold spots and draughts and distributing room heat without creating a cooling breeze. Used correctly, a ceiling fan can save as much as 10% on energy bills during the winter months.

Q. What is covered under the warranty?
A. Fans in the Elite Range and the Fantasia Range have a 10 year motor warranty during which time we will repair or replace defective product. Fans in the EuroFans Range have 5 year motor warranty. All remote control systems carry a 2 year warranty. Costs such as electricians’ fees, hiring of specialist equipment etc is specifically excluded. You must retain your proof of purchase.

Q. Does the fan require any maintenance or cleaning?
A. All Fantasia fans have permanently sealed bearings, double lacquered surfaces and do not required maintenance. An occasional light dusting with a soft cloth is all that is required although it is suggested that all fixings/screws are tightened annually. Do not use any liquids or polishers on any part of your ceiling fan as this may cause damage.

Q. Can I buy a light kit at a later date?
A. Most Fantasia fans are light adaptable and a light can be fitted at any time. The Blade is the only Fantasia fan which cannot be fitted with a light. Some fans come complete with an integral light which cannot be removed or changed – see the model specification for details. Wiring connection to the supply must be installed to our instructions – see our Wiring Diagrams section for more information. Lights are available in a wide selection of styles and finishes to complement almost any décor.

Q. Can I change the blades on my fan to a different colour?
A. All blades are interchangeable within one particular model e.g. a Stainless Steel Mayfair fan can be fitted with blades from any other Mayfair. Blades are often interchangeable between ranges as well e.g. a Gemini fan can take a Mayfair blade. To find out if you can change the blades on your particular fan or to request a blade sample please use the Contact form or call our Sales Office on 01959 564 440.

Small items such as switches, capacitors and other spare parts are sent via 1st Class Royal Mail and incur a £3.50 postage charge

Medium size items such as glass shades, light kits, sets of blades and other accessories are sent via 1st Class Royal Mail recorded delivery and incur a £7.50 postage charge

Ceiling fans are delivered free of charge to a UK Mainland address via DPD couriers

Our standard courier service is next working day for all orders received before midday. If you provide a mobile phone number at checkout then you will receive a one-hour delivery window on the morning of the delivery. If no one is available to take delivery from our couriers, a calling card will be left. If you do not contact the courier, one further delivery attempt will be made. If the courier is still unable to deliver then the goods will be returned to us. If you require re-delivery, we reserve the right to charge any additional shipping costs.

UK Mainland excludes the Channel Islands, Northern Ireland, Isle of Man and the Scottish Highlands & Islands. For an accurate delivery price for these areas please proceed through the checkout and pricing will be displayed according to the delivery postcode provided, prior to any payment being requested. Alternatively please call our sales office on 01959 56 440 and we can obtain a delivery quotation for you.
